Setting up H5P.com in Schoology (LTI 1.3)

To set up H5P.com in Schoology you need to:

1. Adding Schoology as a tool consumer in H5P.com
2. Add H5P.com as an "App" in Schoology
3. Add registration data in H5P
4. Install the App on the Organization and Insert the Deployment ID
5. Verify that it works

Part 1: Adding Schoology as a tool consumer in H5P.com

Step 1: Log in to H5P.com as an admin user with your e-mail address as user name and your password

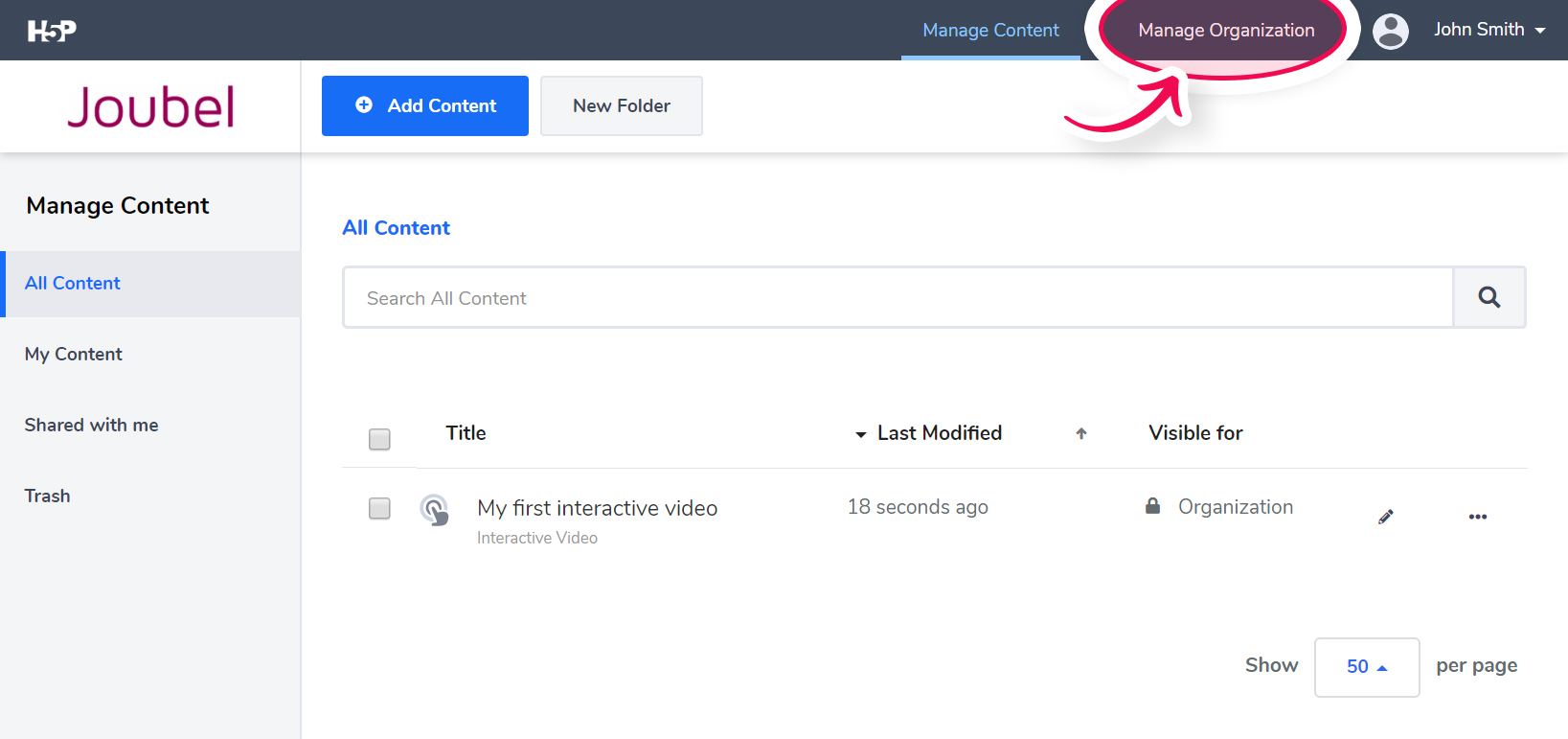

Step 2: Go to Manage Organization

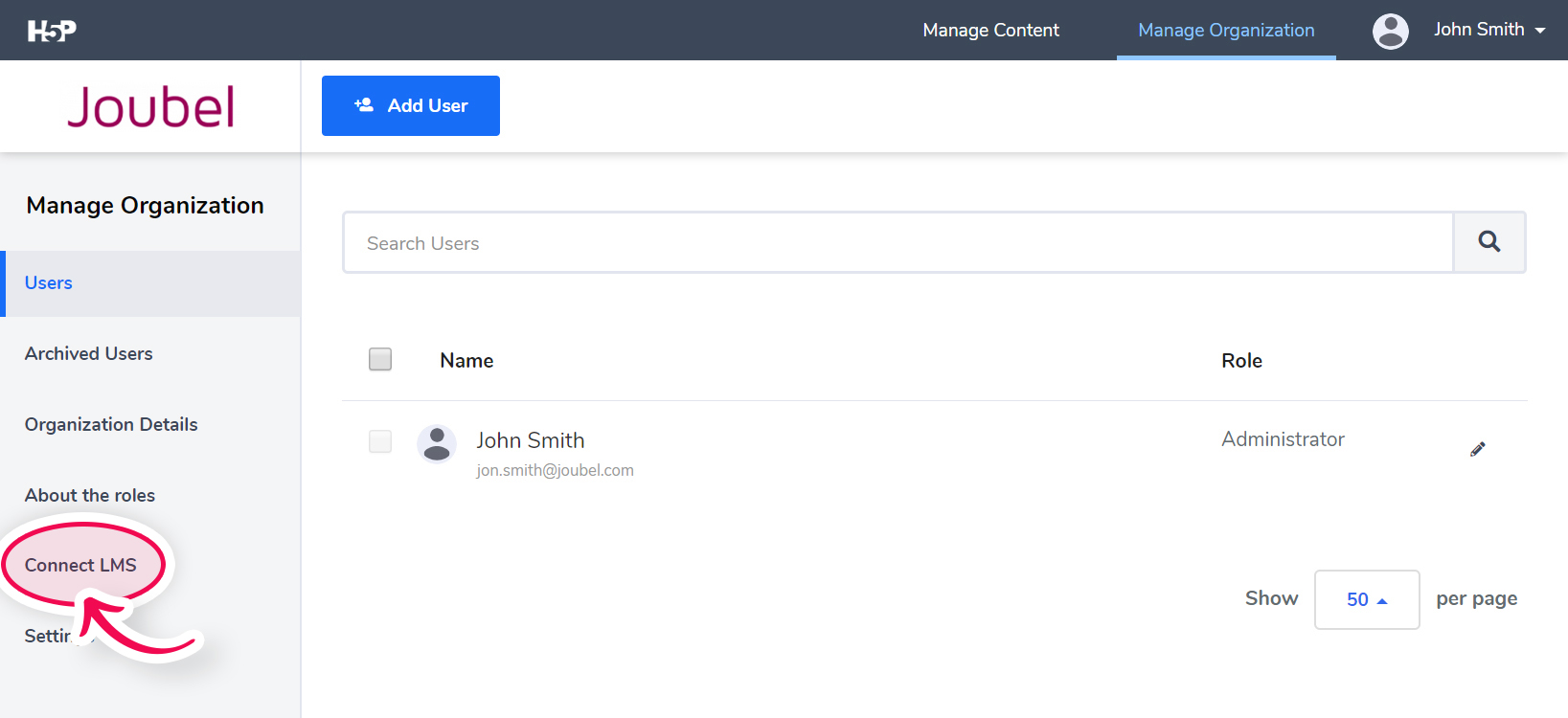

Step 3: Go to "Connect LMS"

Step 4: Under "Select your LMS" choose "Other". Fill in "Schoology" or something similar in the Connection name field, Choose LTI v1.3, and click "Save"

Note: If you want to use LTI v1.1 please follow this tutorial

Part 2: Add H5P.com as an "App" in Schoology

You have everything set up at H5P.com and we move over to Schoology.

Step 1: Log in to Schoology as an administrator

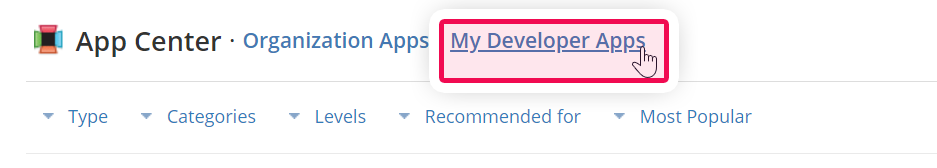

Step 2: Open the "App Center" and click on "My developer Apps"

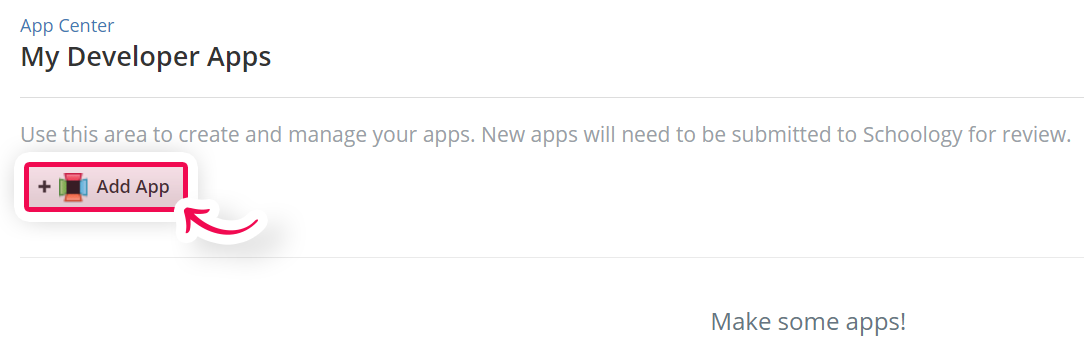

Step 3: Click on +Add App

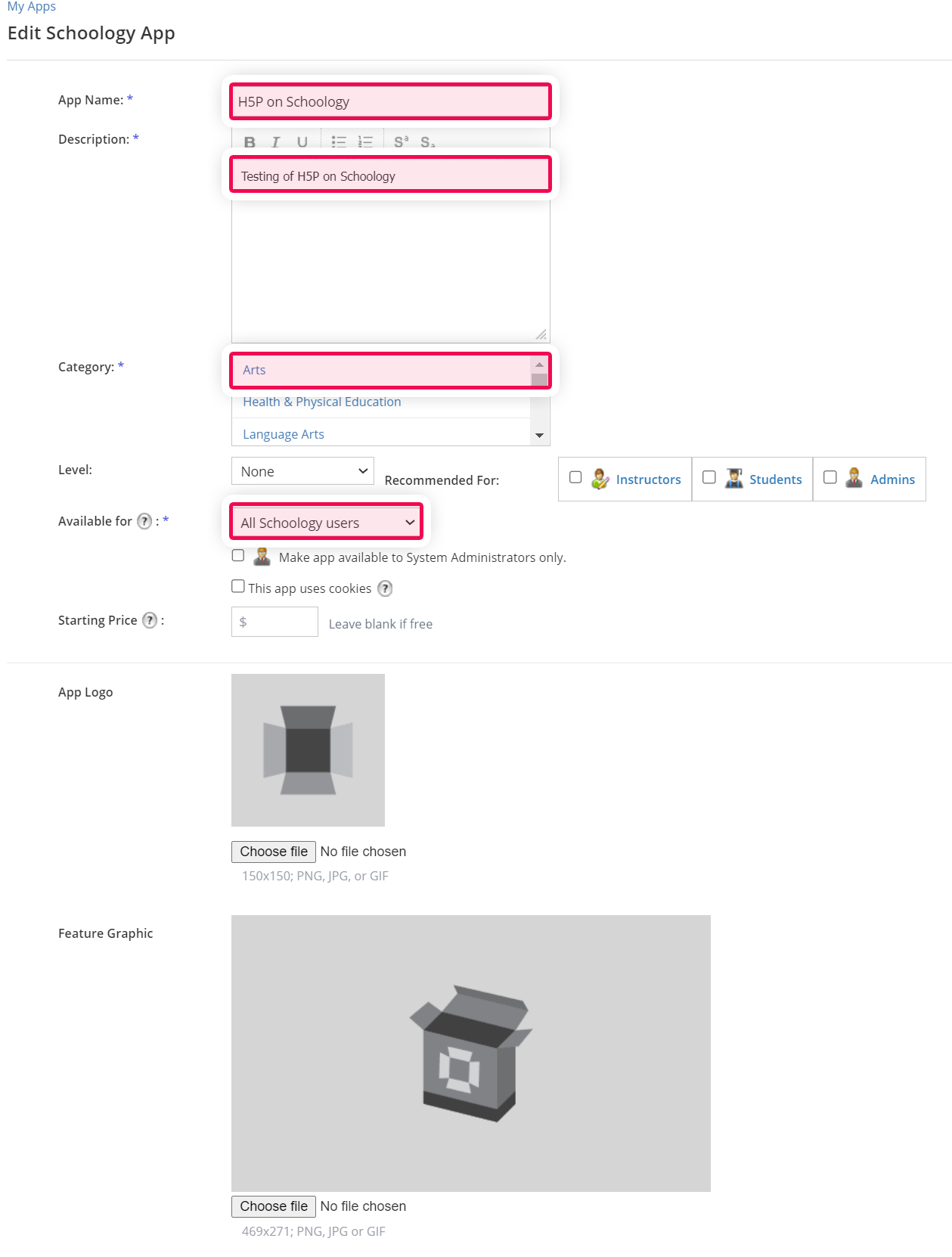

Step 4: Fill in the form with the information relevant to your course. There are mandatory fields that cannot be left blank.

• App name: The name that works best for your app
• Description: The description that works best for your app
• Category: The category  that works best for your app
• Available for: Choose who can access the app
• Type of App: Select LTI 1.3 App and check the "Launch app in Schoology" box
• Can be installed for: Choose your preferred option
• Configuration Type: Manual
• Privacy: Select the "Send name and email/Username of user who launches the tool"
• LTI Advantage Extensions: Check the "Deep Linking", "Assignment and Grade Services", and "Names and Roles Services"boxes
• JWKS URL: The Public Key from Part 1, Step 4
• Domain URL: Enter the domain of your organization on H5P (E.g. https://mydomain.h5p.com/)
• OIDC Login Init URL: The Login URL from Part 1, Step 4
• Redirect URLs: The Redirect URL from Part 1, Step 4
• Accept the terms of service and click Save at the end

Part 3: Add registration data in H5P

You should be redirected to the app inside the "App Center", now you'll need to copy the Client ID and paste it into H5P.com:

Step 1: Click on the options button

Step 2: Click on API Info

Step 3: Inside the popup, copy the Client ID

Step 4: Now go back to the H5P.com tab. The Client ID needs to be inserted on H5P, in the "Connection settings" inside the "Connect LMS" section

Step 5: The rest of the details need to be filled in using the next information:

• Schoology's issuer_id: https://schoology.schoology.com
• OIDC Authorization Endpoint: https://lti-service.svc.schoology.com/lti-service/authorize-redirect
• OAuth 2 Access Token Endpoint: https://lti-service.svc.schoology.com/lti-service/access-token
• JWKS URL: https://lti-service.svc.schoology.com/lti-service/.well-known/jwks

This information can be found in Schoology's support guides: https://developers.schoology.com/app-platform/lti-apps

Part 4: Install the App on the Organization and Insert the Deployment ID

Step 1: Inside "My Developer Apps" in Schoology

Step 2: Click on Install LTI 1.3 App

Step 3: Agree with the terms and continue

Step 4: Select the "Add to Organization" option

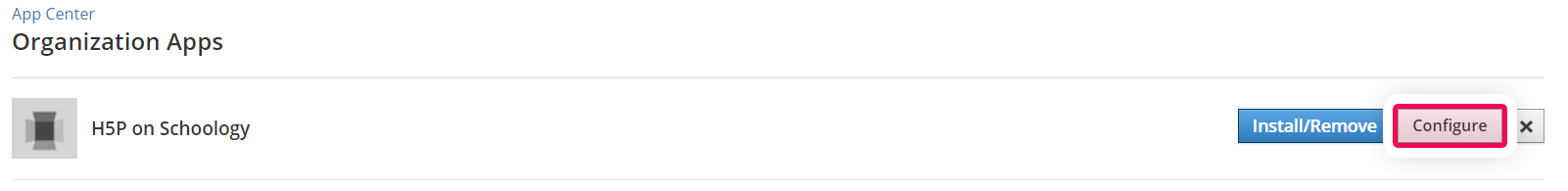

Step 5: On this new window click on "Configure"

Here you'll find the Deployment ID this also needs to be inserted in H5P.com below the Connection Settings, on the "Deployment ID" button.

Part 5: Verify that it works

H5P should now be added to the organization. Now is the perfect moment to test the app by inserting content on Schoology.

Step1: Go to your courses

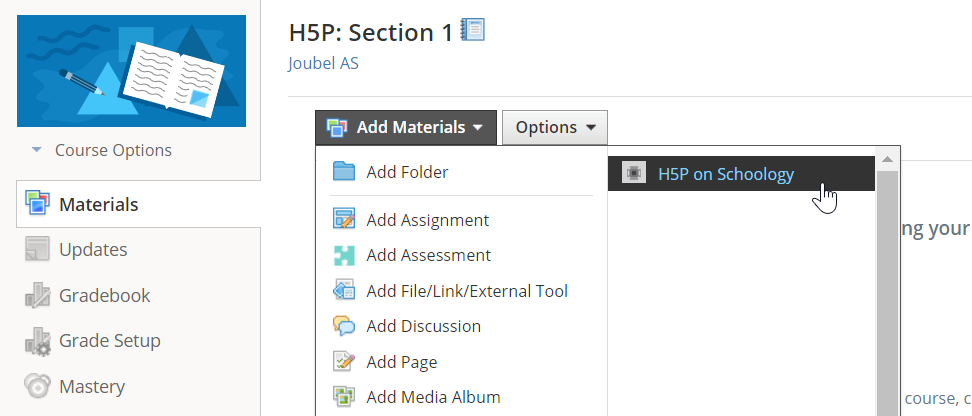

Step 2: On the top, click on Add Materials

Step 3: On the deployable menu, your app should be visible

Step 4: Open H5P and insert the content.

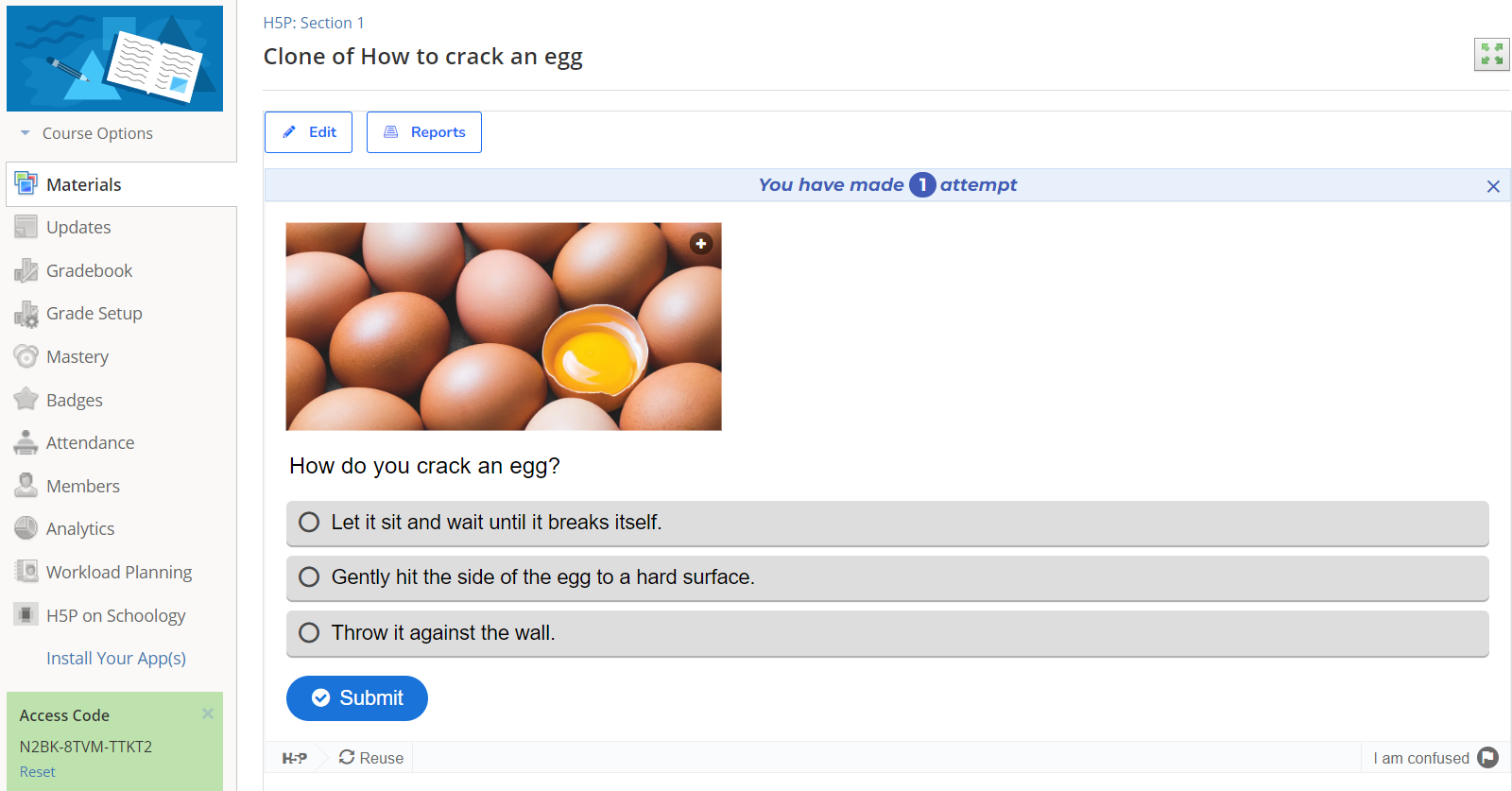

Step 5: Now you should be able to use the H5P inside Schoology
