Setting up H5P.com in Brightspace (LTI 1.3)

To set up H5P.com in Brightspace, you need to first:

1. Add Brightspace as a "tool consumer" in H5P.com
2. Make sure you have needed permissions
3. Add H5P.com as an LTI 1.3 tool in Brightspace
4. Verify that it works

Part 1: Add Brightspace as a "tool consumer" in H5P.com

Step 1: Log in to H5P.com as an admin user with your e-mail address as the username and enter your password.

Step 2: Go to Manage Organization

Step 3: Go to "Connect LMS"

Step 4: Select your LMS. Fill in "Brightspace" or something similar in the Connection name field, Choose LTI v1.3, and click "Save".

Make note of the following information provided on H5P.com, these are the connection details and look something like this:

• Login URL: https://yourorganization.h5p.com/lti/login
• Redirect URL: https://yourorganization.h5p.com/lti/launch
• Public key: https://yourorganization.h5p.com/lti/jwks/numbers.json

You’ll be needing these in the next section.

Important: Please, do not copy and paste the information above, it won't work, as it has been edited and are not the actual details you must use. You need to copy the valid values from inside H5P.com as they are personally and randomly generated. It looks something like the image below:

Step 1: Log in to Brightspace as an administrator

Step 2: In the admin menu choose “Roles and Permissions”

Step 3: Click the "Edit permissions" option next to the role

Step 4: Select "External learning tools" from the menu above and check "Manage LTI Advantage Tool Registrations" and "Manage LTI Advantage Tool Deployments"

Part 3: Add H5P.com as an LTI 1.3 tool in Brightspace

Step 1: Log in to Brightspace as an administrator

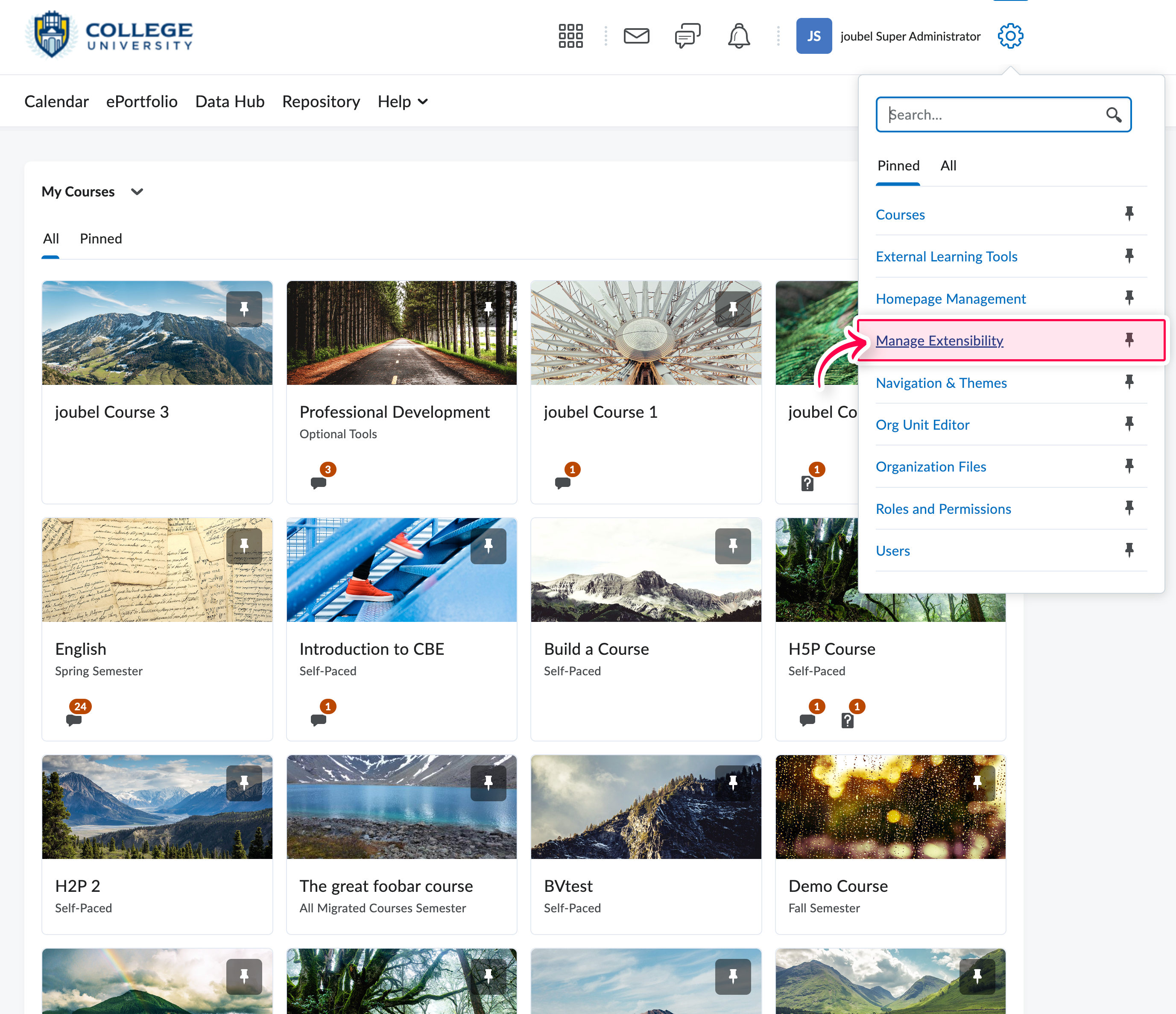

Step 2: In the admin menu choose “Manage Extensibility”

Step 3:

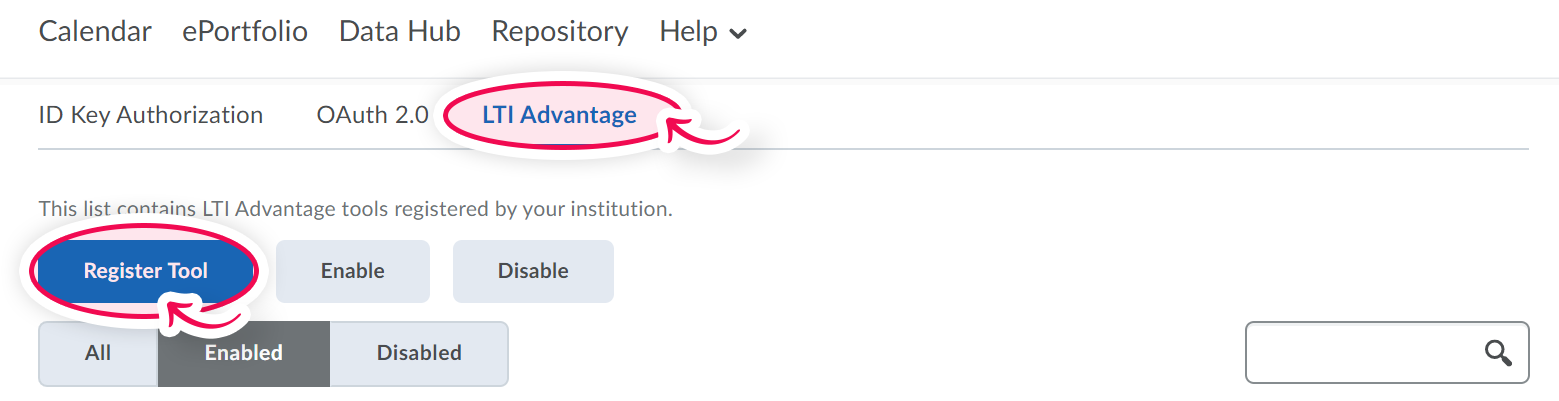

• Select “LTI Advantage”

• Press the “Register Tool” button

If you see the question "How would you like to register your tool?", choose standard.

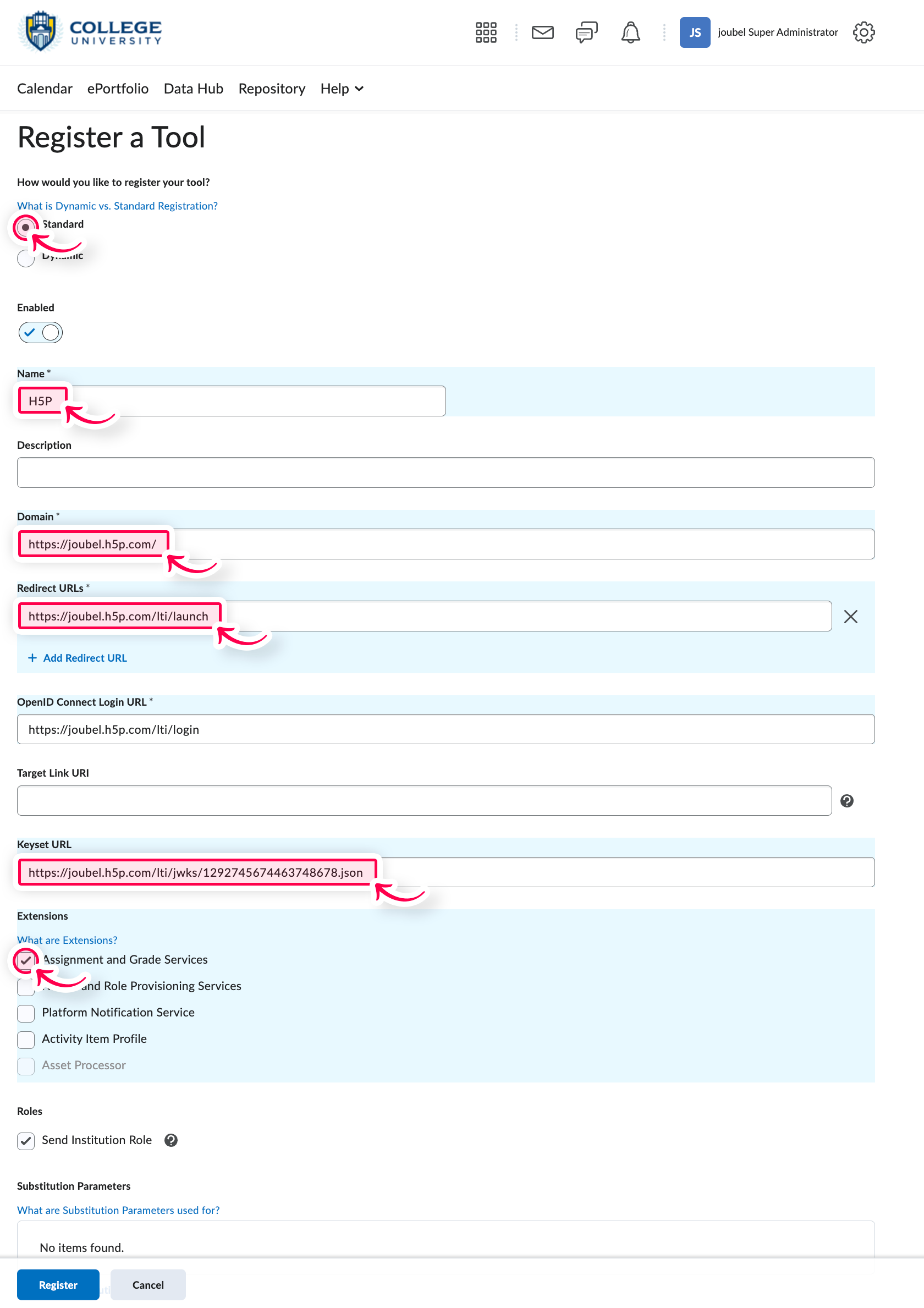

Step 4: Fill in the form like this:

• In "Domain" enter the root URL for your organization, e.g.https://yourorganization.h5p.com, and for the redirect, URLs paste the URL endpoint that you copied from h5p.com previously.
• In the “OpenID Connect Login URL” type in the redirect URL, but replace “launch” with “login”. E.g.https://yourorganization.h5p.com/lti/login
• For the “Keyset URL” paste the “Public Key” URL that you copied from H5P.com
• Under the extensions label check “Assignment and Grade Services” and “Deep Linking”.
• Finally, fill in a “Name” and click the “Register” button.

Take note of the “Client Id”, “Brightspace Keyset URL”, “OpenID Connect Authentication Endpoint” and “Issuer” fields that you are presented with when registering. (You can always edit the tool to see these URLs)

Now go back to the H5P.com tab.

Step 5:

• Click the “Connection settings” button for the connection that you previously created.
• In “Client ID” fill in the “Client Id” that you just got
• For the “Issuer” field, fill in the “Issuer” you just got
• For “Login URL” fill in the “OpenID Connect Authentication Endpoint”
• For “Key Set URL” fill in the “Brightspace Keyset URL”

Now, go back to the Brightspace tab.

Step 6:

• While viewing the new tool, scroll down and Click the “View Deployments” button/link at the very bottom of the page.

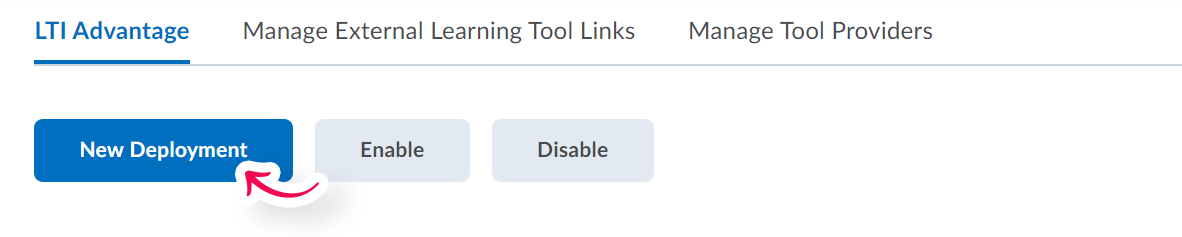

• Click the “New Deployment” button.

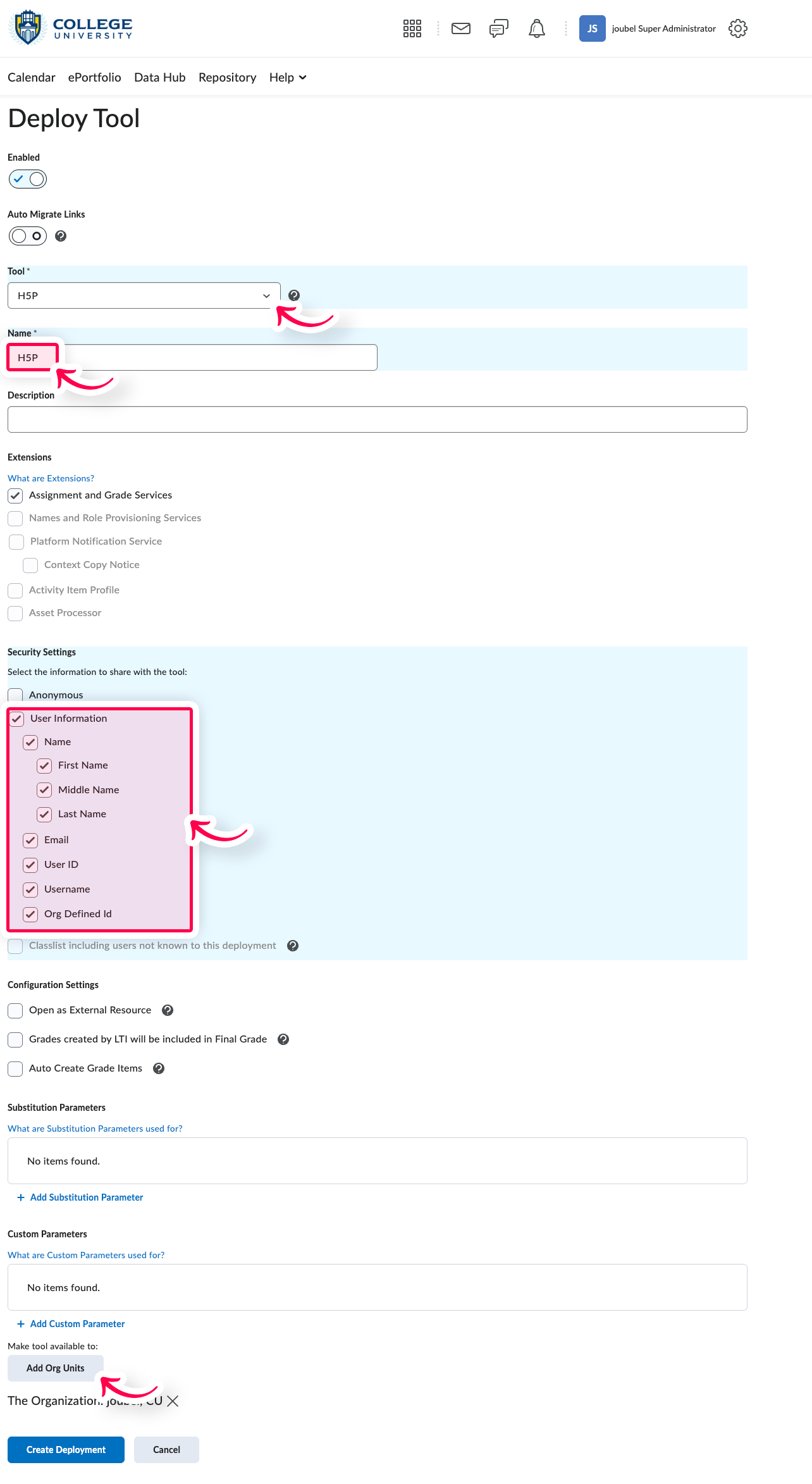

Step 7:

• In the form, select the name of the tool you just created from the “Tool” dropdown.
• Under the “Security settings” label check the “Org Unit Information”, “User Information” and “Link information”.
• Make the tool available to the placements that you wish through the “Add org units” button.
• Finally fill in a name for the deployment and press the “Create Deployment” button.

Step 8:

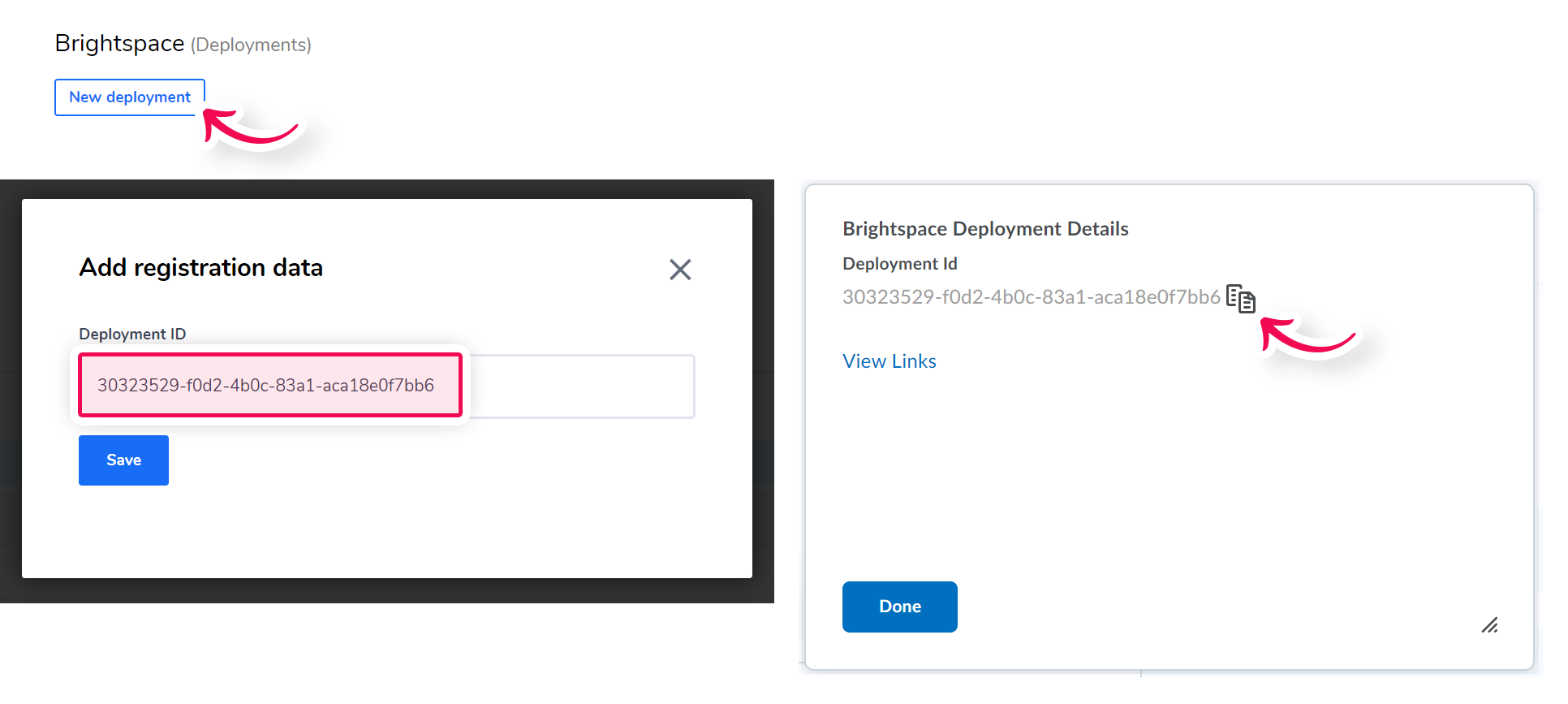

• Copy the “Deployment Id” that you’re presented with.
• Go back to the H5P.com tab.
• Press the “New Deployment” button for your connection.
• Paste in the “Deployment ID” and click “Save”.

Step 9:

• Click the deployment you created in Brightspace, and the form will show again.

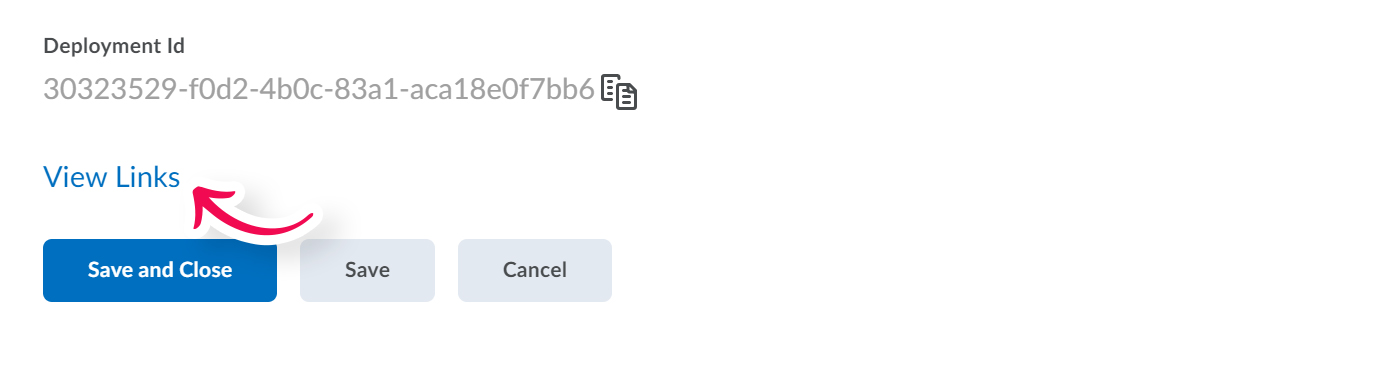

• Scroll to the bottom and click the "View Links" button that will be showing there now

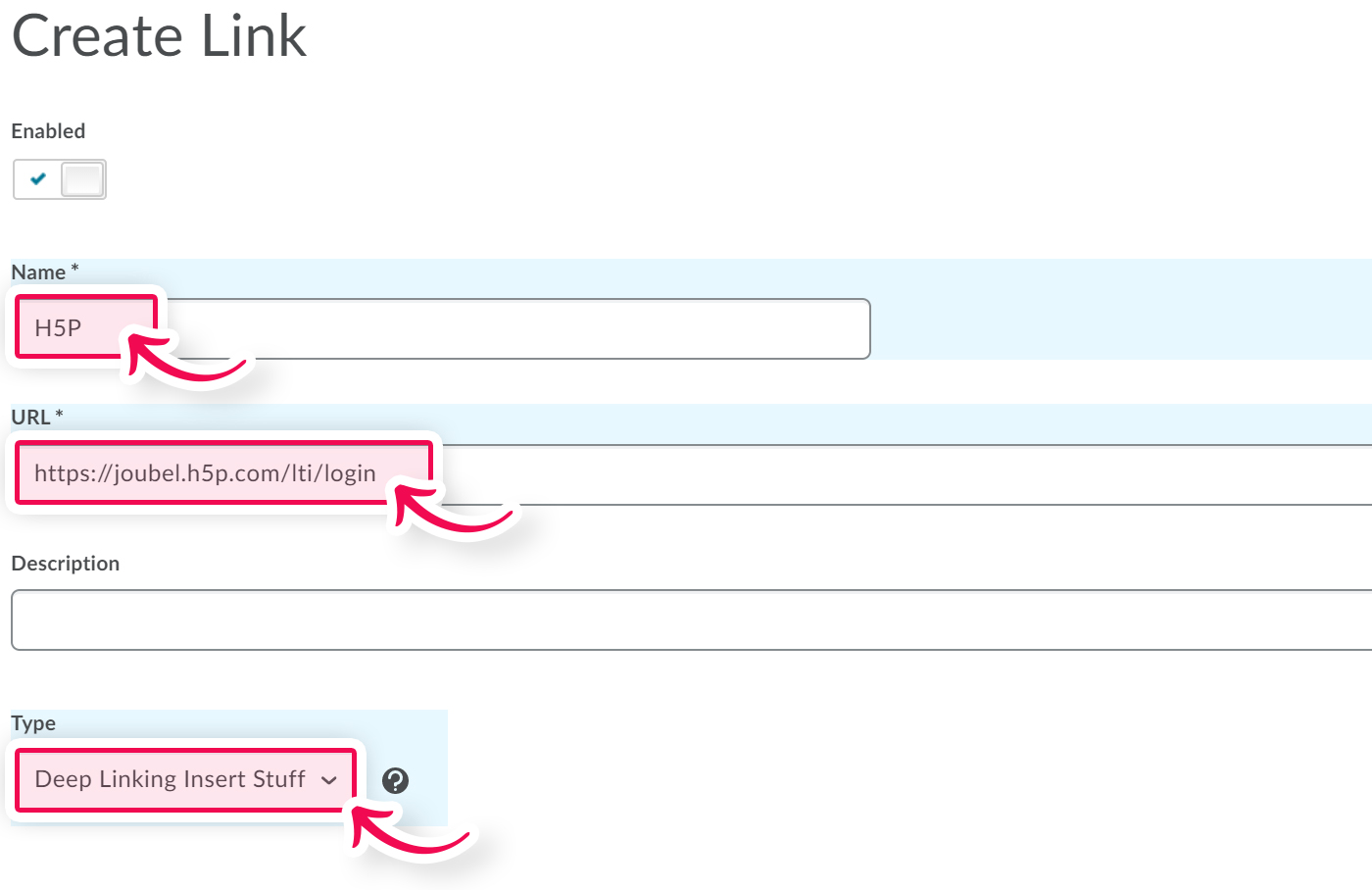

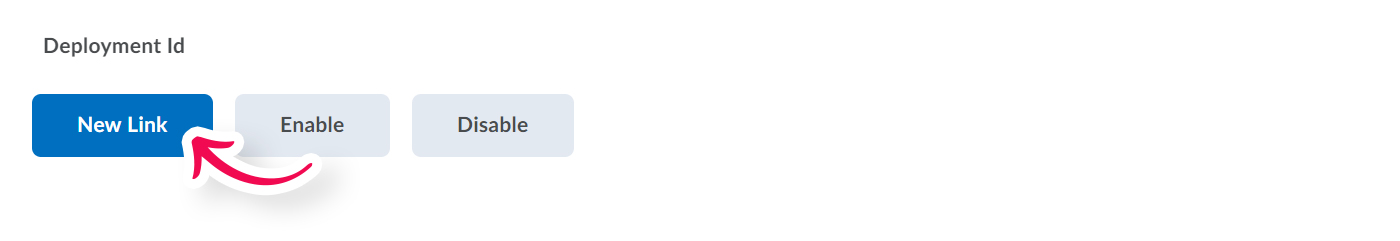

• On the "Links" page click the "New Link" button.

• Type in a name for your link, this is the name that will show when inserting LTI content in a course
• For "URL" type in the login URL, e.g. https://yourorganization.h5p.com/lti/login (replace with your organization)
• and finally, for type, choose "Deep Linking Insert Stuff". (Another option is to choose "Deep Linking Quicklink". Then H5P will appear in the "Existing Activities" dropdown inside Brightspace)
• Save the form.

You now have a working deployment for the places where you allowed the deployment to be used through the “Add org units” button for the deployment. You can e.g. insert content by going to a course -> “Create an assignment” -> click the “Insert stuff” button in the WYSIWYG and select your tool by the name you gave it.

Part 4: Verify that it works

Everything is now set up. To make sure that it works we're going to add an H5P to a discussion.

Step 1: Log in as an instructor.

Step 2: Go to a course that you made H5P available for in Part 3 Step 4

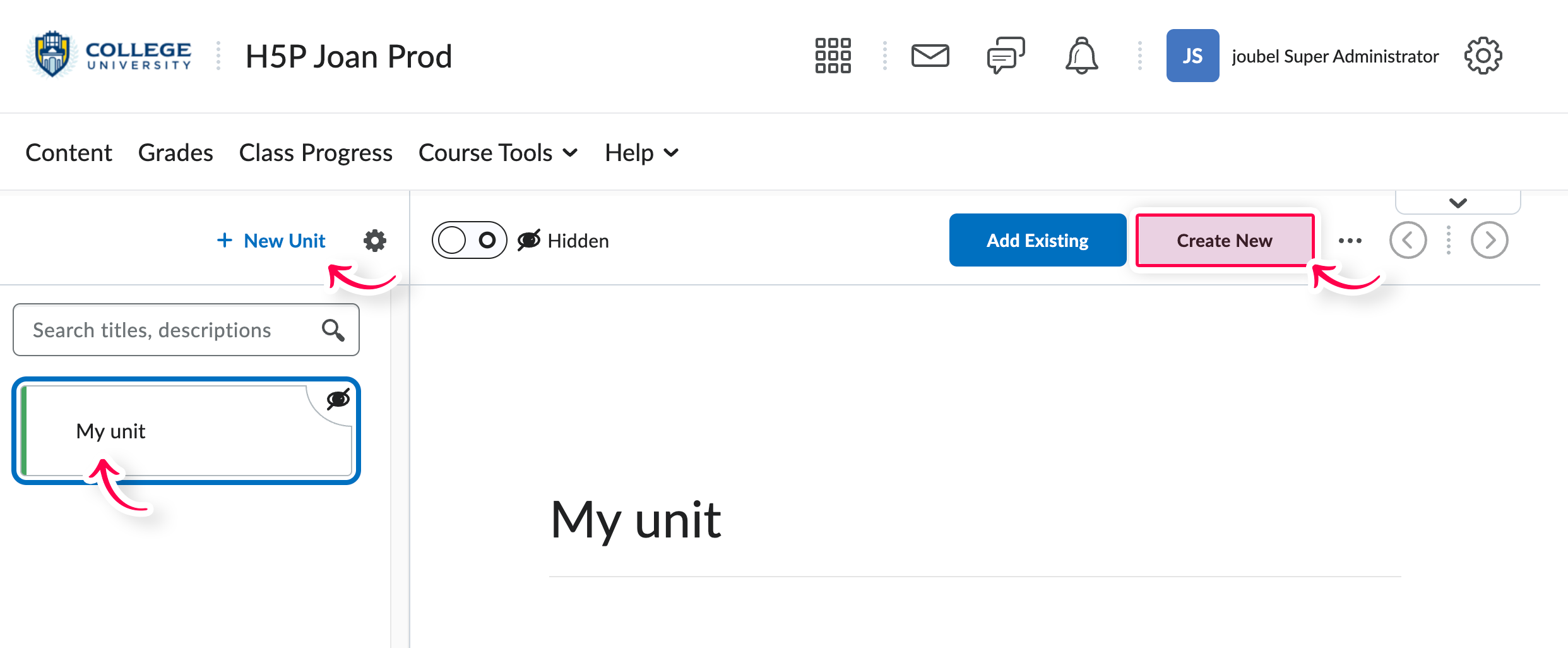

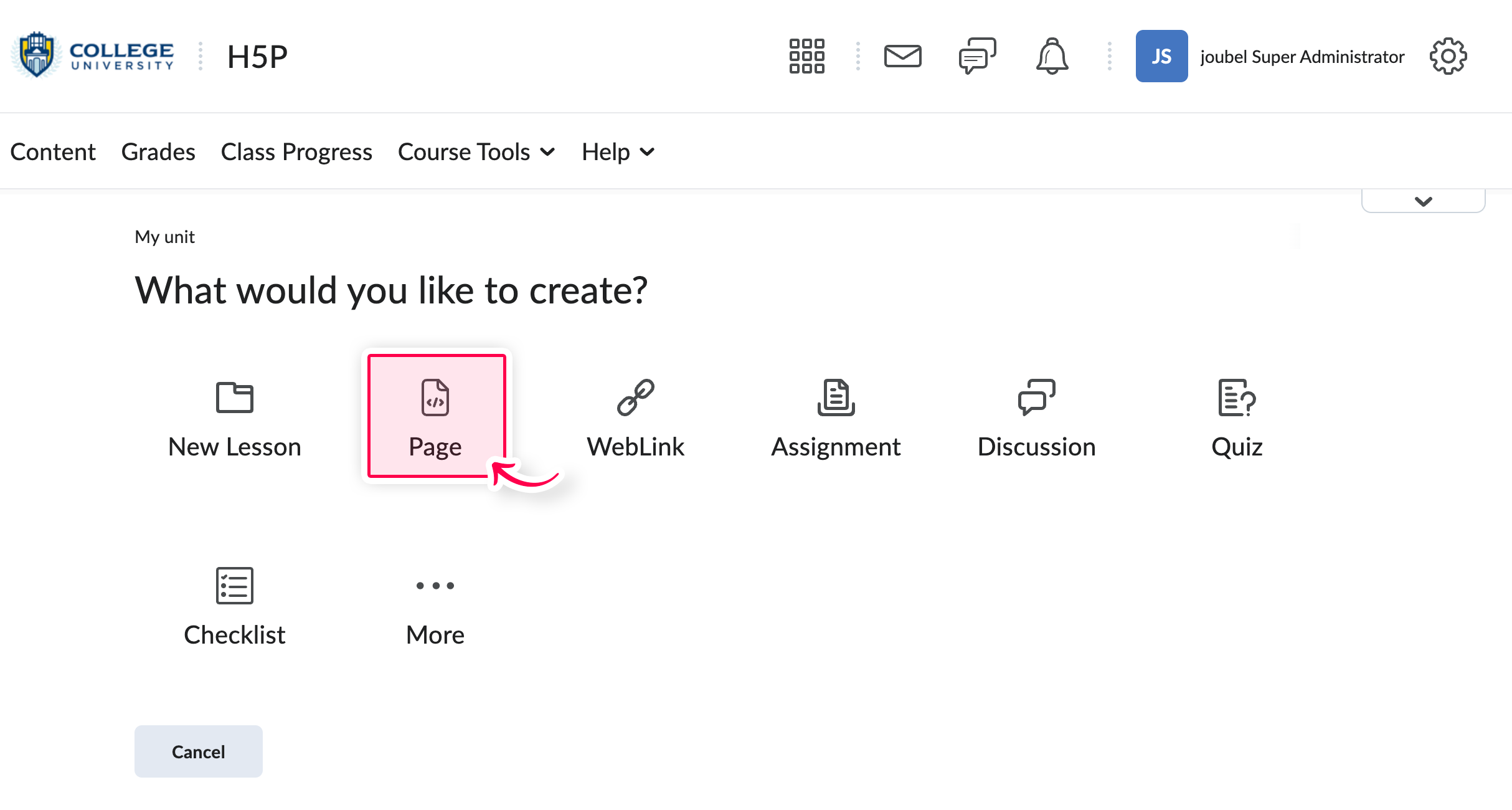

Step 3: Go create a discussion via the content list or through some other method

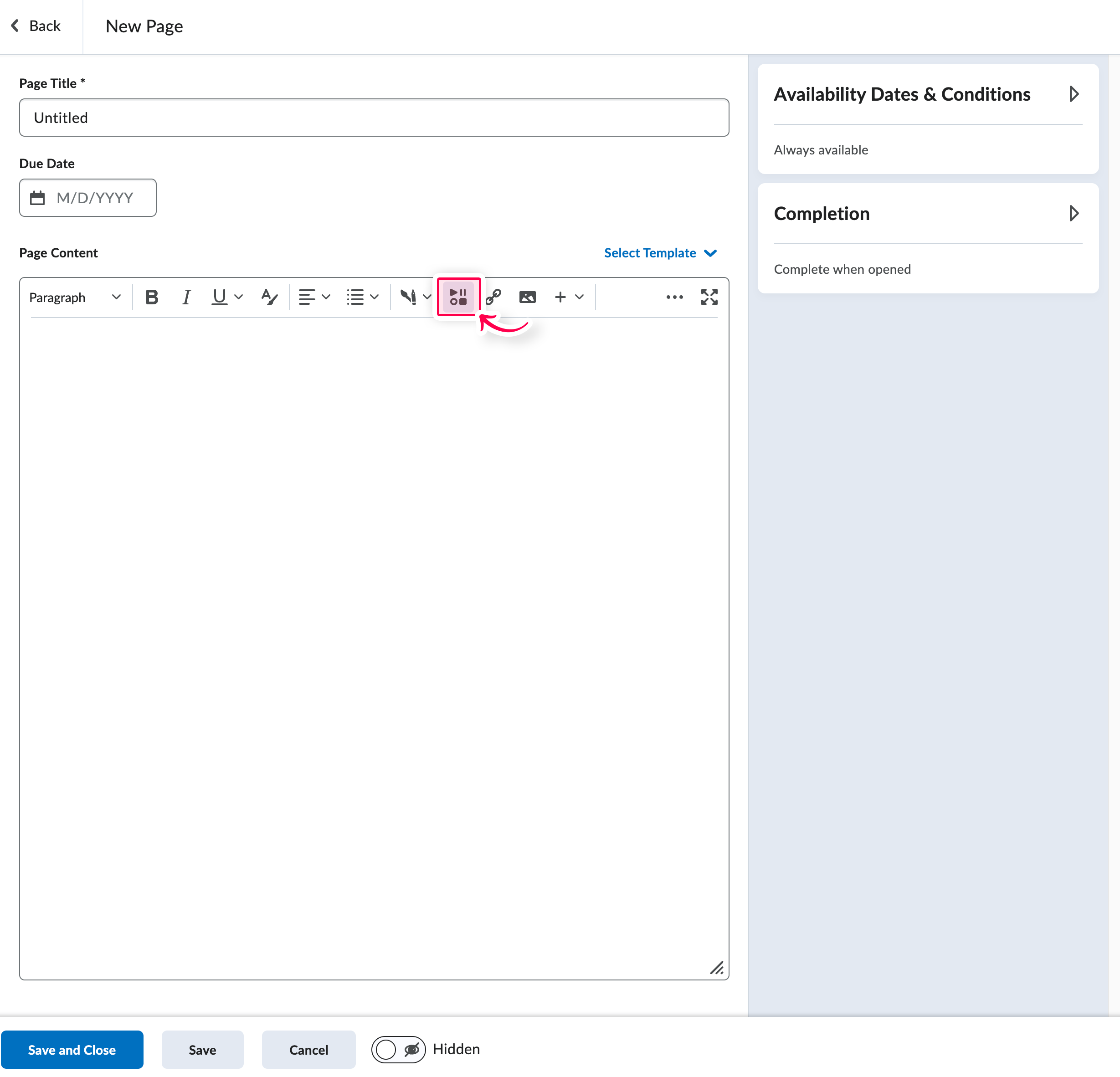

Step 4: When creating the discussion click on the "Insert stuff" button

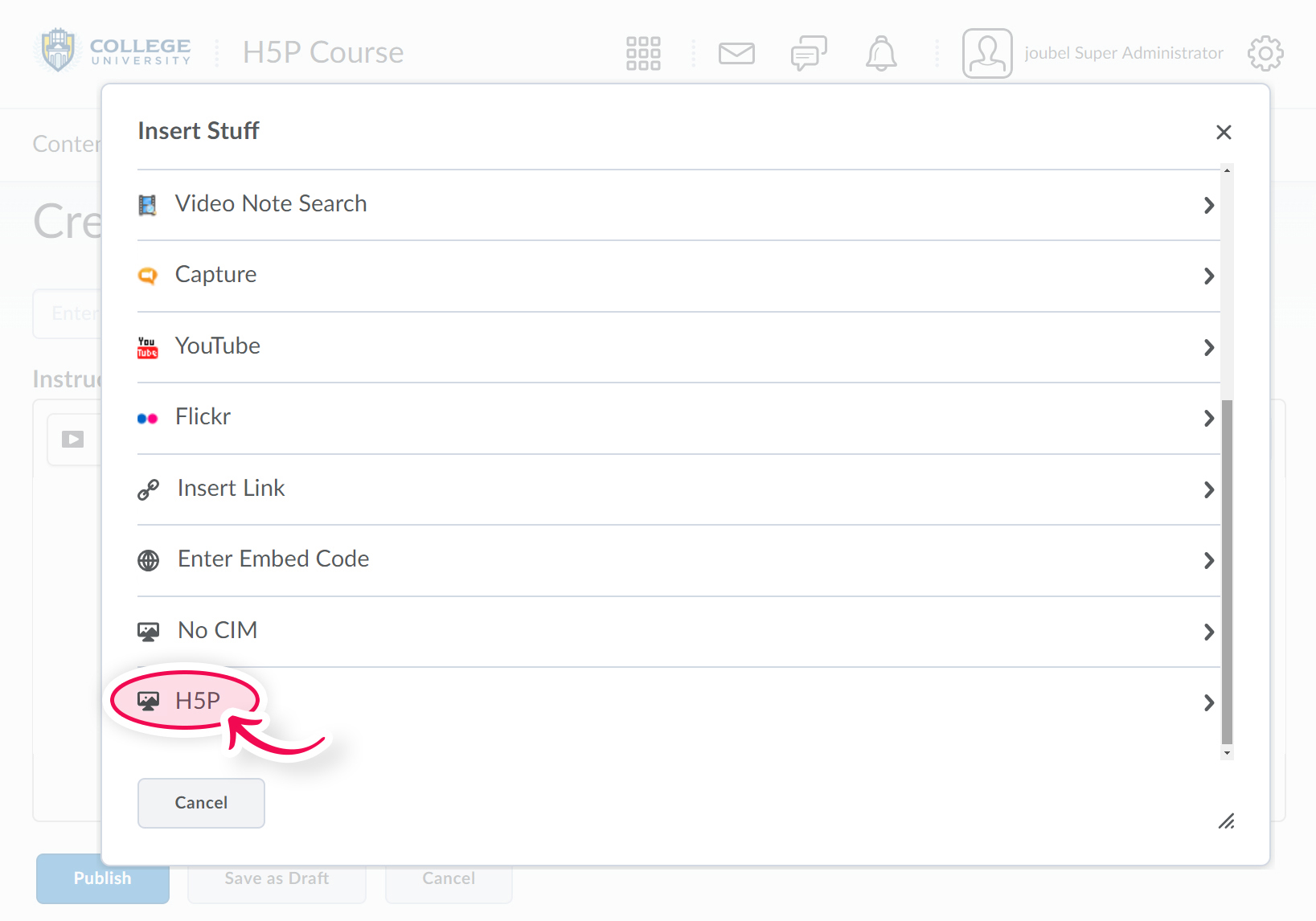

Step 5: Select the H5P tool (you probably have to scroll down)

Step 6: Do note that you may resize the popup that appears using the bottom left corner. You may choose between creating new content or picking from your existing content.

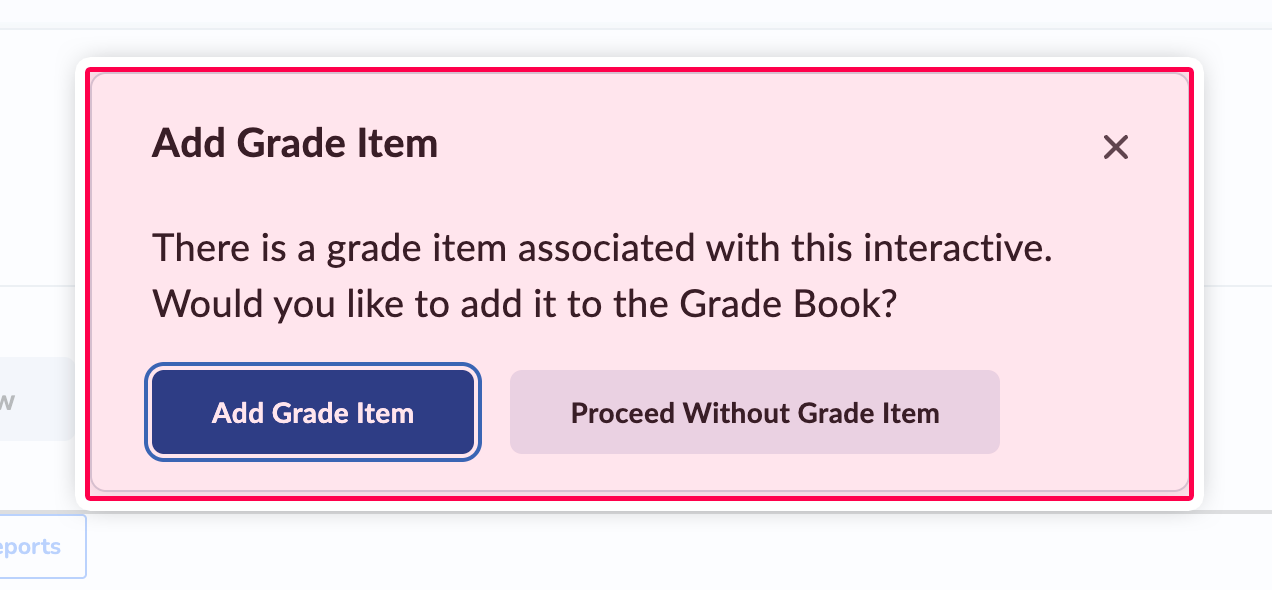

Step 7: We'll also make sure that grading works, so create a quiz or another type of H5P activity that provides a final score

Step 8: Login as a student and complete the scoreable activity

Step 9: Log back in as an instructor or admin and go to grades in the course you're using for testing. You should see the student's score there.

Enjoy using H5P in Brightspace!
